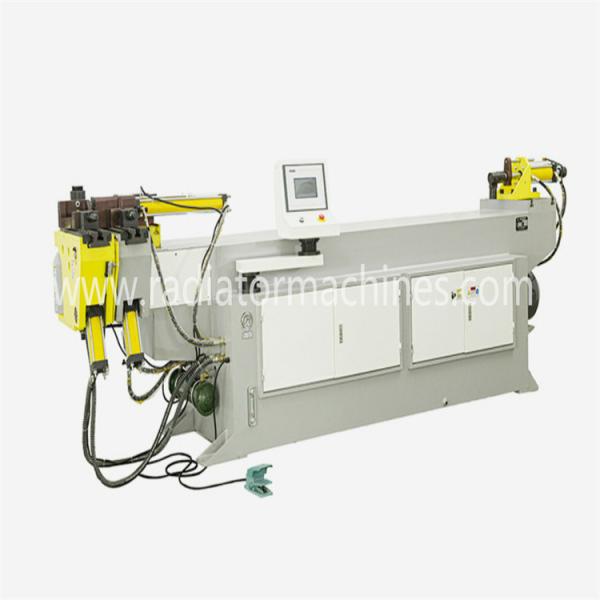

    Manual Feeding And Manual Angle Rotation DW75NC Hydraulic Hand Pipe Bender With Max Effective Distance Of Mandrel 2950mm

    Ask Lasest Price
    Brand Name : WONDERY
    Model Number : DW75NC
    Certification : CE
    Price : TO BE ENGOTIATED
    Payment Terms : L/C, T/T
    Supply Ability : 200 Set/Sets per Year
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Manual Feeding And Manual Angle Rotation DW75NC Hydraulic Hand Pipe Bender With Max Effective Distance Of Mandrel 2950mm

    DW75NC Hydraulic Hand Pipe Benders featuring manual feeding and manual angle rotation

    Application


    1. Main specification

    1. NC control unit

    2. Direct acting hydraulic clamping

    3. Manual feeding and bending

    4. Can make 2-dimensional elbow bend
    5. Easy operaton interface and easy data input
    6. Large program storage capacity up to 16 units
    7. Automatically lock angle, angle changing is controlled by coder
    8. High bending accuracy
    9. Self diagnosis and error messages
    10. Optional boost facility

    11. Fit for carbon steel pipe, stainless steel pipe, alloy steel pipe, aluminium pipe, copper pipe, etc.

    12. Bending diameter of pipe: 0.5-8 inch

    13. Bending radius: 175-550mm

    14. Max bending angle: 185 degrees

    2. Technical parameter

    Specification/ModelUnitDW75NC
    Max bending capabilitymmΦ75x3.0
    Max bending radiusmmR250
    Min bending radiusmmR20
    Max bending angleDegree185
    Max effective distance of mandrelmm2950
    Control SystemNC Control
    Max elbow bend pipeUnit16
    Max storable sectionsUnit16×16
    Motor powerKW7.5
    Max. Hydraulic PressureMpa14
    Hydraulic System ControlElectromagnetic Valve
    Oil Tank CapacityL150
    SizeCm430×90×115
    Weight of MachineKg≈2200

    3. Mechanical parts and components

    1Slowdown machineTaiwan VGMOne year
    German ADC
    2Beeline guide trackTaiwan ABBA
    3CoderJapan Omron

    4. Hydraulic pressure system

    No.NameOrigin and BrandService
    1Various magnetic valveJapan YukenOne year
    2Oil TankShanghai Baoshan
    3Seal ringJapan Valqua
    4Oil pipeTaiwan Lianhui
