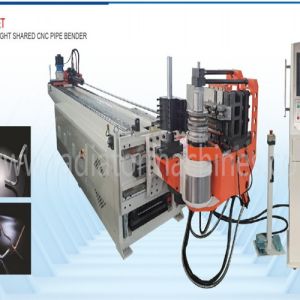

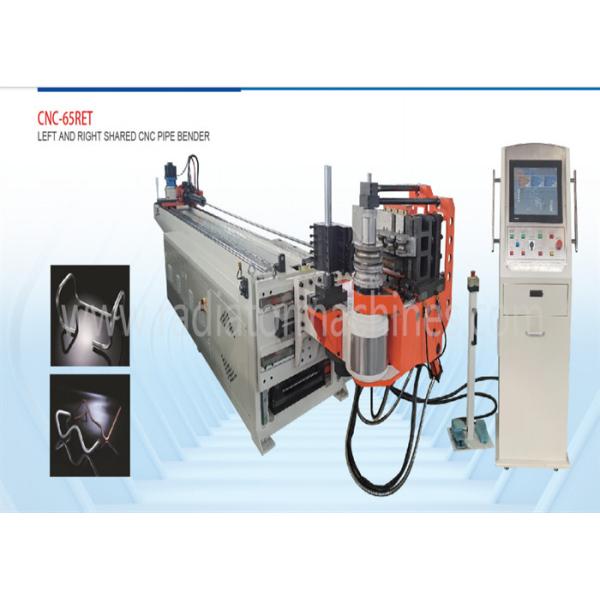

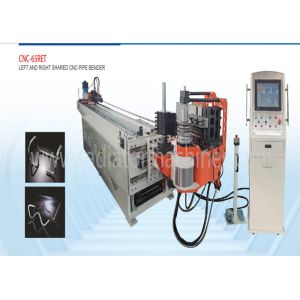

    Advanced Automatic Bending Machine With 4 Axis Electrical Servo Drive

    Ask Lasest Price
    Brand Name : WONDERY
    Model Number : CNC-65RET
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 Set/Sets per Year
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Advanced Automatic Bending Machine With 4 Axis Electrical Servo Drive

    Advanced Automatic Bending Machine with 4-Axis Electrical Servo Drive


    1.Equipment Features

    The pipe bender is driven by Y (feeding),B(rotating pipe),C (bending pipe),Z (demoulding)

    and 4-axis electrical servo.The above 4-axis electrical servo drive,with precision trolley servo

    angle,pipe bending accuracy of 0.01°,feeding accuracy of 0.01mm.The electric servo drive

    avoids the defect that the accuracy of the ordinary pipe bender is affected by oil temperature,

    and is suitable for high load and mass production.


    2.Main Technical Parameters


    ModelCNC-65RET
    Max.bending capacity (carbon steel)

    63.5x2.0mm

    Bending radius range (round pipe)

    30-260mm

    Max.pipe diameter for reciprocating feeding

    40mm

    Bending angle range190°
